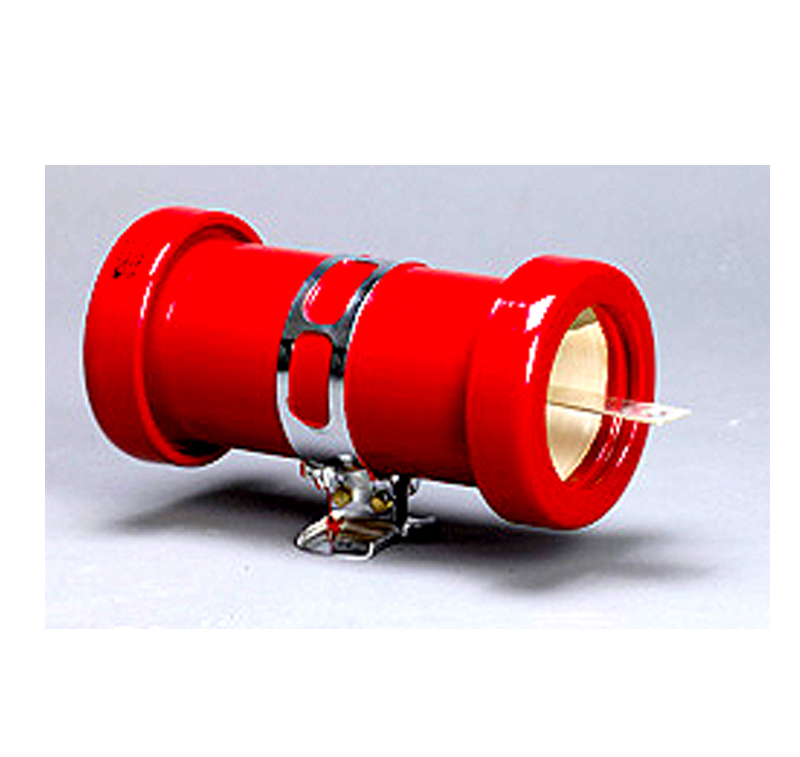

High power ceramic capacitor technical parameters:
1.Typical dissipation factor: ≤0.0008；
2.Volume resistivity: ≥10000MΩ；
3. Permissible variation of rated capacitance: K（+/-10%）；
4. Temperature range: -40/+85；
5. Rated temperature: +85℃；
6. Maximum relative humidity: 75%;
7. Test voltage: 2 times of rated voltage if the rated voltage≤15KV or 1.5 times of rated voltage if the rated voltage>15KV.
