Capacitor CT87
CT87 drum-shaped high-voltage ceramic capacitor technical parameters:
1. Typical dissipation factor: ≤1%；
2. Volume resistivity: ≥10000MΩ；
3. Permissible variation of rated capacitance: K（+/-10%）；
4. Temperature range: -40/+85；
5. Rated temperature: +85℃；
6. Maximum relative humidity:75%;
7. Test voltage: 1.5 times of rated voltage.

Overview

Model

Nominal power capacity

Rated voltage(KV)

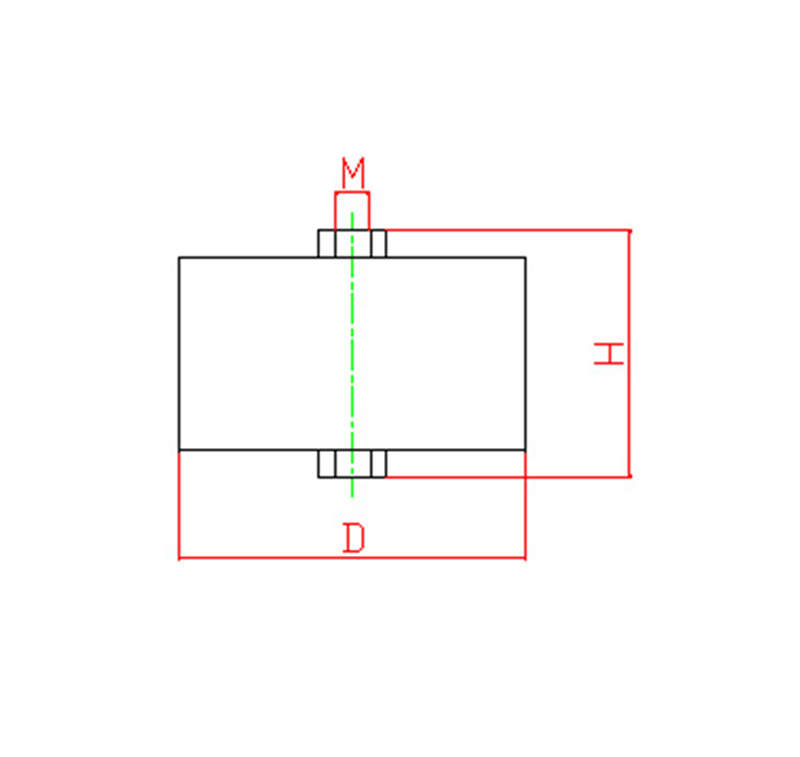

Dimension(mm)

Temperature change rate

(PF)

DC

D

H

Copper Nut

CT87-1

470

10

31

18

M4

+20%/-30%

CT87-2

1000

9

37

CT87-3

2200

7.5

47
