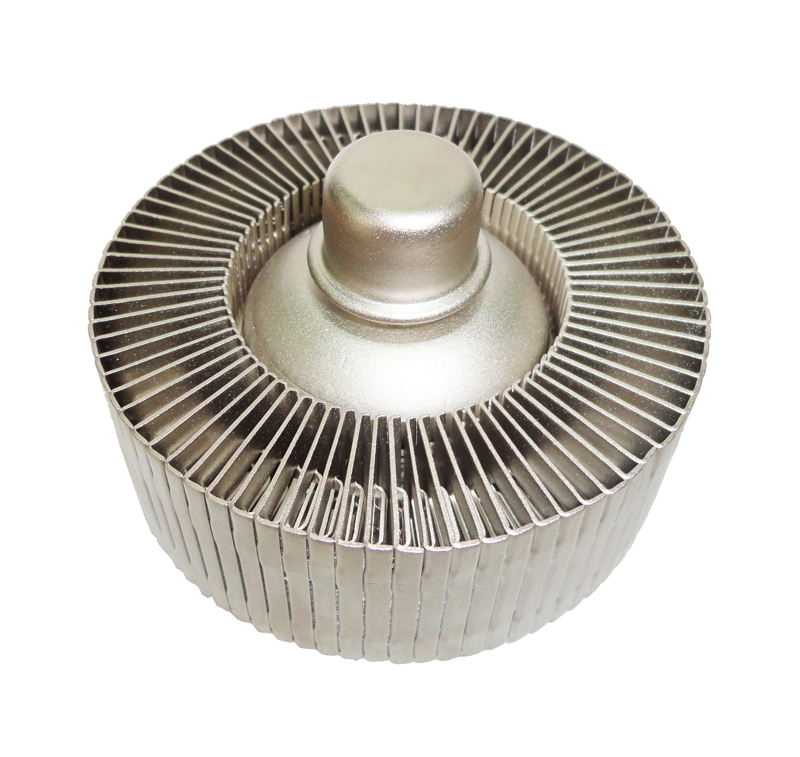

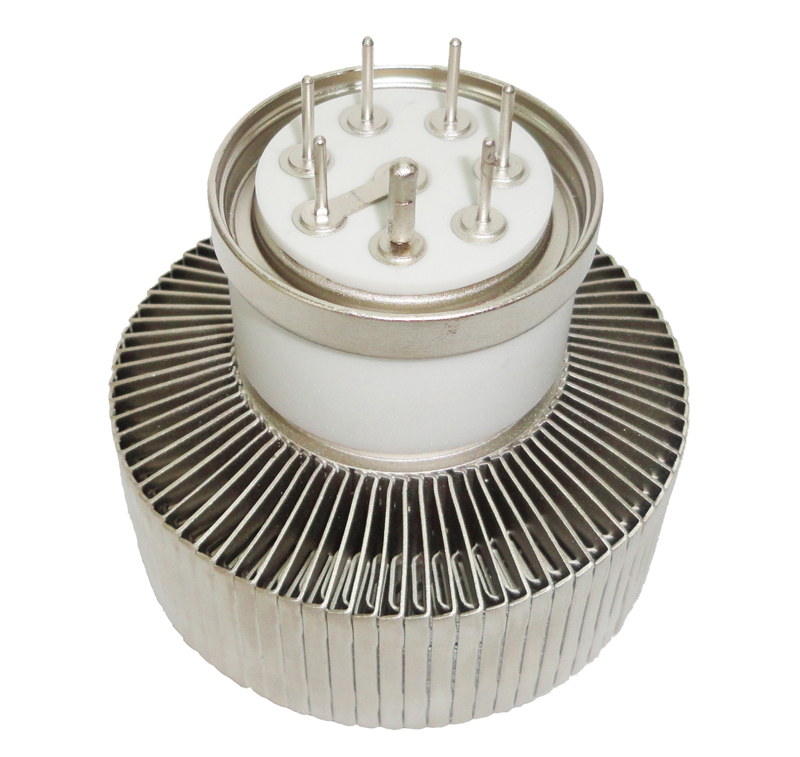

The 3CPX1500A7 is a ceramic-metal and rugged high-mu power triode, designed with oxide coated cathode.
With a pulse plate current rating of50A, and a voltage hold off rating 10kV in air, with forced-air cooling of the anode, or 15kV when immersed in a suitable dielectric liquid which is also used for tube cooling. The tube maximum frequency operation is 250MHz.
The tube is intended for pulse modulator or pulse regulator service
GENERAL CHARACTERISTICS
Electrical
|
Cathode |
Oxide Coated, Unipotential |
|
Filament Voltage |
5.5V |
|
Filament Current |
11.2A |
|
Transconductance |
55mA/V |
|
Amplification Factor |
200 |
|
Interelectrode Capacitances: (Grounded Cathode) |
|
|
Cin |
38.5pF |
|
Cout |
0.1pF |
|
Cgp |
10pF |
Mechanical
|
Overall Length |
102mm |
|
Overall Diameter |
86mm |
|
Net Weight |
0.735kg |
|
Mounting Position |
Any |
Cooling
|
Cooling |
Forced Air or Liquid Immersion |
