Capacitor PE200
High power ceramic capacitor technical parameters:
1.Typical dissipation factor: ≤0.0008；
2.Volume resistivity: ≥10000MΩ；
3. Permissible variation of rated capacitance: K（+/-10%）；
4.Temperature range: -40/+85；
5. Rated temperature: +85℃；
6.Maximum relative humidity: 75%;
7. Test voltage: 2 times of rated voltage if the rated voltage≤15KV or 1.5 times of rated voltage if the rated voltage>15KV.

Overview

Model

Rated Capacitance

Rated Voltage

Rated Power

Max Current

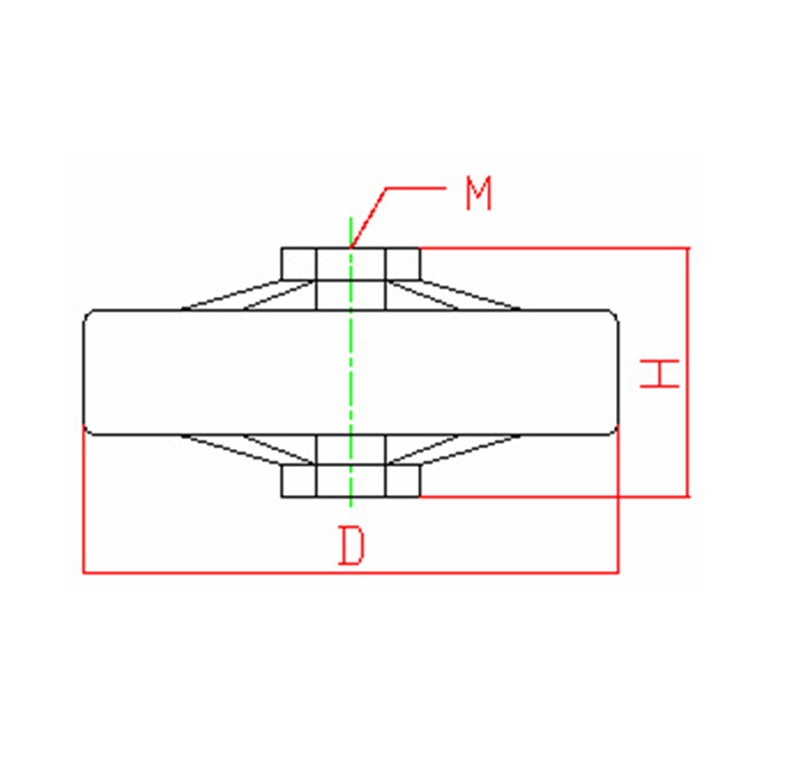

Dimensions (mm)

Temperature Coefficient

(PF)

(KVDC)

(KVA)

(A)

D

H

Copper Nut

(PPM/ ℃ )

PE200

1000

30

150

60

200

55

M10

-750

1500

1600

2000

14

45

2500

3000

4000

13

5000

6000

12

205
