The 3CW45000H3 is a water cooled, ceramicmetal medium-mu power triode containing a thoriated tungsten carbide cathode, and used mianly in industrial radio-frequecy heating service. The tube provides 120kW output power and the maxmium grid dissipation is 1kW, making an excellent choice for industrial service.
The 3CW45000H3 is a water cooled, ceramicmetal medium-mu power triode containing a thoriated tungsten carbide cathode, and used mianly in industrial radio-frequecy heating service. The tube provides 120kW output power and the maxmium grid dissipation is 1kW, making an excellent choice for industrial service.
GENERAL CHARACTERISTICS
|
Filament Voltage |
10 V |
|
Filament Current |
160 A |
|
Amplificaton Factor |
20 |
|
Interelectrode Capacitance (Grounded Cathode) |
|
|
Input |
70 pF |
|
Output |
43 pF |
|
Grid Plate |
2.3 pF |
|
Plate Output Power |
120 kW |
|
Operation Position Vertical |
base up or down |
|
Cooling |
Water and Forced Air |
|
Capacity of Water |
≥70 L/min |
|
Capacity of Air |
≥80 m3/h |
|
Anode Water Jacket |
SK-1380 or 3060R |
|
Temperature of Cooling Water |
≤50 ℃ |
|
Maximum Seal Temprature |
250 ℃ |
|
Maximum Filament Lead Temprature |
175 ℃ |
|

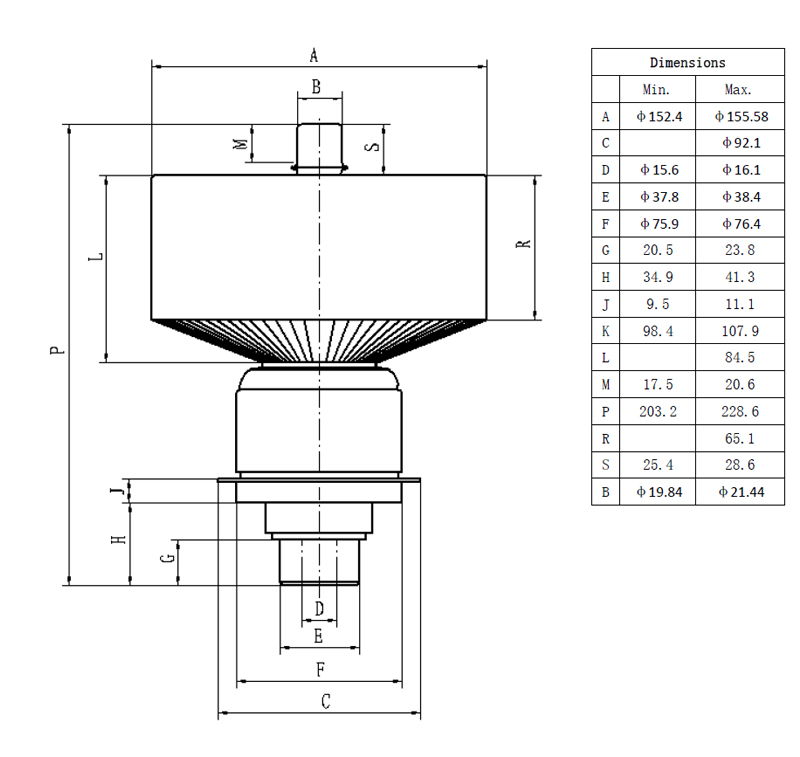

Maximum Height |
487.7 mm |
|
Maximum Diameter |
134.6 mm |
|
Appro. Weight |
6.4 kg |
