T he 3CW40000H3 is water cooled, ceramic-metal medium-mu power triode containing a thoriated tungsten carbide cathode, and used mainly in industrial radio-frequency heating service. The tube is an excellent choice for industrial service because of firm structure, great efficiency, and long life.
T he 3CW40000H3 is water cooled, ceramic-metal medium-mu power triode containing a thoriated tungsten carbide cathode, and used mainly in industrial radio-frequency heating service. The tube is an excellent choice for industrial service because of firm structure, great efficiency, and long life.
|
Filament voltage |
10 V |
|
|
Filament current |
160 A |
|
|
Amplification factor |
20 |
|
|
Interelectrode capacitance |
Input |
70 pF |
|
Output |
2.3 pF |
|
|
Grid Plate |
43 pF |
|
|
Max frequency |
90 MHZ |
|
|
Operating position Vertical |
Vertical, base down |
|
|
Cooling |
Water and Forced Air |
|
|
Max temp. at seal |
250 ℃ |
|
|

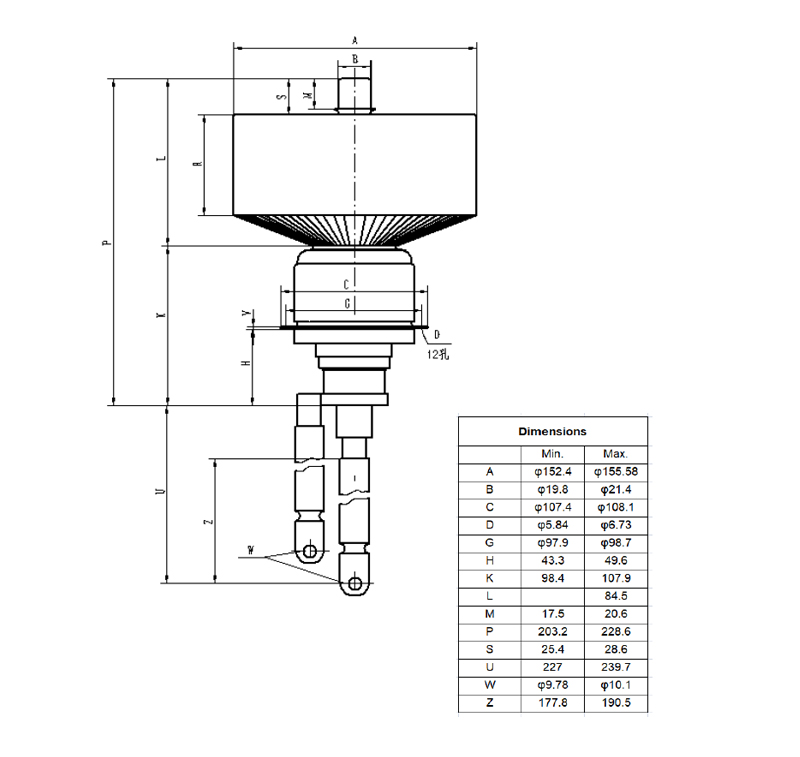

Height max. |
539 mm |
|
|
Diameter max |
171.4 mm |
|
|
Weight |
6.4 kg |
|
