The 3CX10000A3 is a forced air-cooled, ceramic-metal medium amplifier factor and
high-power triode, which is containing a thoriated tungsten carbide cathode. It is designed for mainly used as an oscillator in industrial heating machines. Or used as a linear RF amplifier in Class C or AB2. The max. anode dissipation power is 10kW and max. rated frequency is 160MHz.
The 3CX10000A3 is a forced air-cooled, ceramic-metal medium amplifier factor and
high-power triode, which is containing a thoriated tungsten carbide cathode. It is designed for mainly used as an oscillator in industrial heating machines. Or used as a linear RF amplifier in Class C or AB2. The max. anode dissipation power is 10kW and max. rated frequency is 160MHz.
GENERAL CHARACTERISTICS
|
Filament Voltage |
7.5 V |
|
Filament Current |
99 A |
|
Interelectrode Capacitance (Grouded Filament) |
|
|
Cin |
58 pF |
|
Cout |
38 pF |
|
Cgp |
1.5 pF |
|
Amplification Factor |
20 |
|
Operation Position Vertical, base up or down |
|
|
Cooling |
|
|
Anode |
Forced Air |
|
Stem |
Forced Air |
|
Maximum Temperature on Anode envelope |
|
|
and seal |
250 ℃ |
|

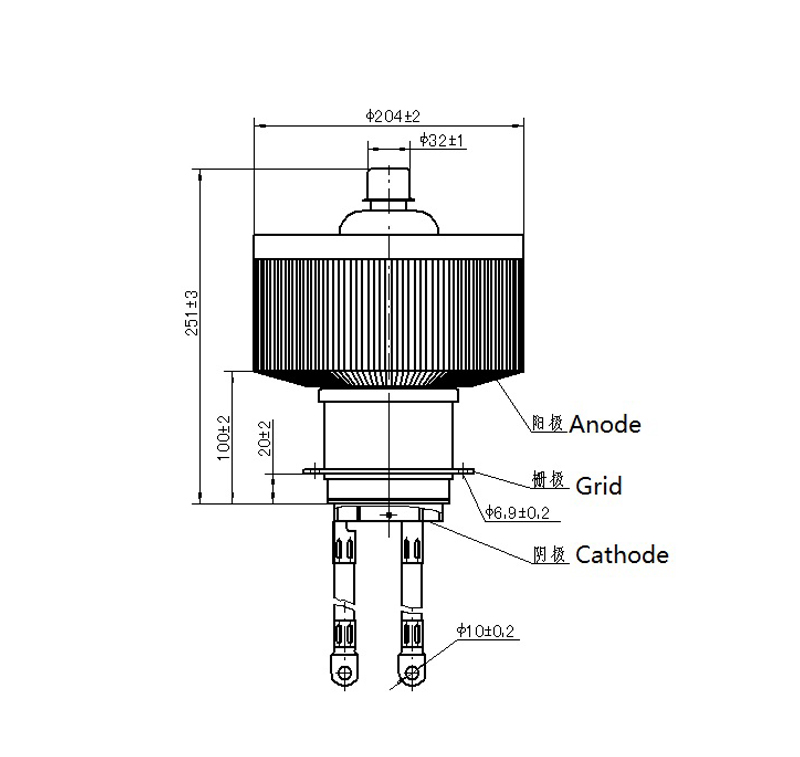

Maximum Height |
216±6.5 mm |
|
Maximum Diameter |
177.5±1.5 mm |
|
Appro.Net Weight |
5.5 kg |
MAXIMUM RATING ABSOLUTE
|
DC Plate Voltage |
7 kV |
|
DC Plate Current |
4 A |
|
DC Grid Voltage |
1 kV |
|
DC Grid Current |
0.6 A |
|
Plate Dissipation |
10 kW |
