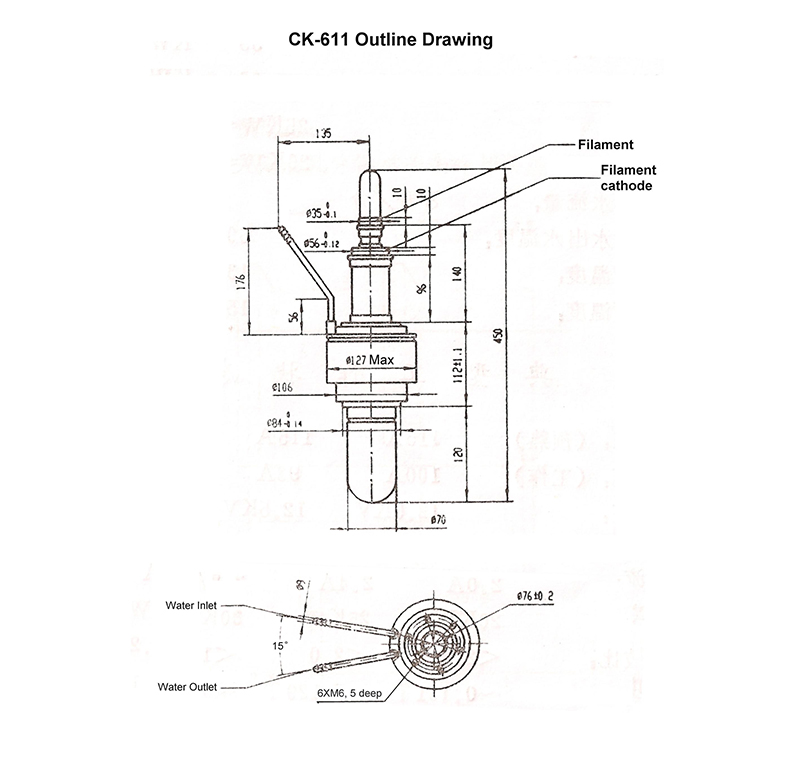

Specificaitons of CK-611

Frequency

915 +/- 25

MHz

Output power

30

KW

≤1.2

Anode voltage

12.5

KV

Anode current

2.8

A

Filament voltage

12.6 +/- 1.2

V

Filament current

115

A

Filament resistance

0.01

Ohm

Preheating time

60

S

Magnetic field

1100

GS

Weight

7.2

Kg

Maximum Ratings

Minimum

Maximum

Unit

Filament surge current

250

A

Filament current

115

A

Preheating time

60

S

Anode voltage

14

KV

Anode current

3

A

Anode input power

35

KW

Anode dissipation

15

KW

Load voltage standing wave ratio (VSWR)

≤1.2

Output power= 30 KW

≤2.5

Output power= 25 KW

≤3

Output power= 20 KW

Anode cooling water flow

8

L/Minute

Anoder cooling water outlet temperature

50

℃

Metal surface temperature

130

℃

Ceramics surface temperature

150

℃

Typical Operation

Operation 1

Operation 2

Operation 3

Filament current (preheating)

115 A

115 A

115 A

Filament current (operating)

100 A

98 A

96 A

Anode voltage

12.5 KV

12.5 KV

12.5 KV

Anode current

2.0 A

2.4 A

2.8 A

Output power

20 KW

25 KW

30 KW

Load voltage standing wave ratio (VSWR)

< 2.5

< 2.0

< 1.2

Intensity of magnetic flux

0.131T

0.129T

0.127T
