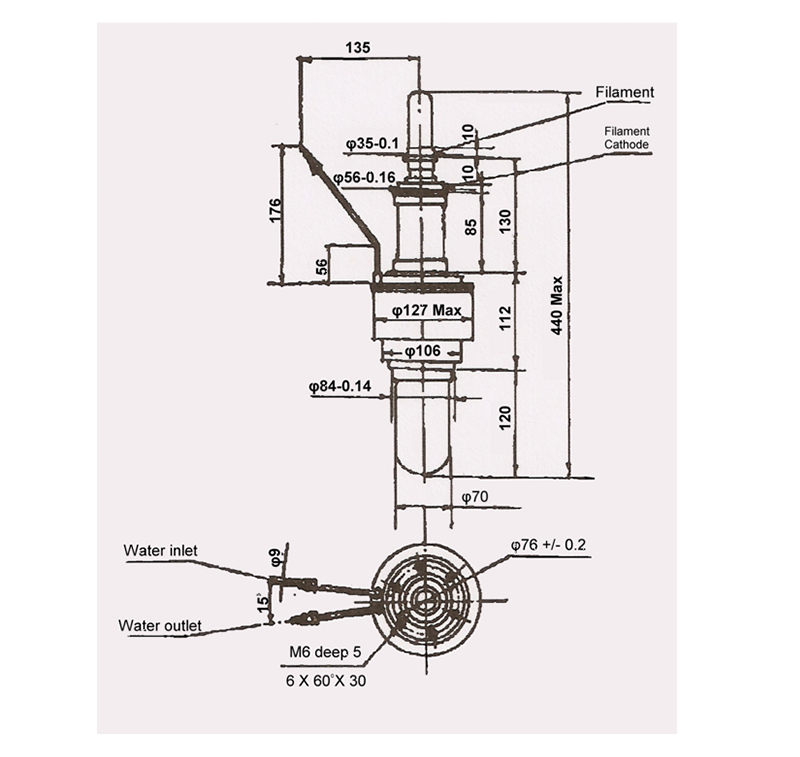

Frequency

915 +/- 25

MHz

Output power

5

KW

Minimum

Anode voltage

6.5

KV

Anode current

1.3

A

Filament voltage

10 +/- 1

V

Filament current

35

A

Filament resistance

0.0275

Ohm

Preheating time

60

S

Load voltage standing wave ratio (VSWR)

<2

Magnetic field

450-500

GS

Weight

7.5

Kg

Maximum Ratings

Minimum

Maximum

Unit

Filament surge current

75

A

Filament current (preheating)

35

A

Preheating time

60

S

Anode current

2

A

Load voltage standing wave ratio (VSWR)

3

Output power

10

KW

Anode cooling water flow

3

L/Minute

Anoder cooling water outlet temperature

50

℃

Metal surface temperature

130

℃

Ceramics surface temperature

150

℃

Typical Operation

Filament current (preheating)

35

 A

Filament current (operating)

30

A

Anode voltage

6.5

KV

Anode current

1.3

 A

Output power

>5

KW

Load voltage standing wave ratio (VSWR)

1.5

KG
