Electron tube   ITK15-2

The ITK 15-2 is a RF power triode for using as industrial R.F heating oscillator. This tube uses a coaxial design and metal-ceramic technology. This triode may be operated in CW or pulse modes.

For operation in pulse mode, the parameters depend on each equipment characteristics. The ITK 15-2 is a water cooled triode. The output power is 63KW in CW mode. The anode dissipation is up to 20kW under frequency 120MHz.

Overview

The ITK 15-2 is a RF power triode for using as industrial R.F heating oscillator. This tube uses a coaxial design and metal-ceramic technology. This triode may be operated in CW or pulse modes.

For operation in pulse mode, the parameters depend on each equipment characteristics. The ITK 15-2 is a water cooled triode. The output power is 63KW in CW mode. The anode dissipation is up to 20kW under frequency 120MHz.

GENERAL CHARACTERISTICS

Electrical

Filament thoriated tungsten

Filament voltage (+ 5 %, - 10 %)

7.2 V

Filament current

180 A

Surge current

500 A max.

Cold resistance

5 m

Capacitances

grid-anode

25 pF

 grid-cathode

60 pF

cathode-anode

1.4 pF

Amplification factor

25 approx.

Transconductance (Va: 4 kV, Ia:4 A)

60 mA/V approx

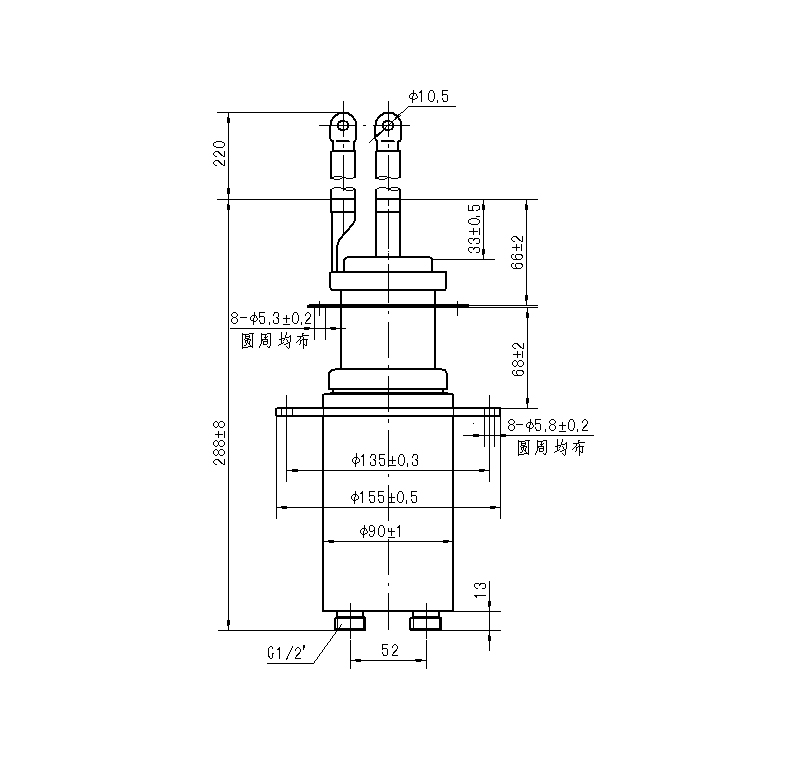

Mechanical

Operating position

vertical, anode down

Weight

3.8 kg approx.

Height

296 mm max.

Diameter

155 mm max.
