The ITK 12-1 is a RF power triode designed specifically for industrial applications.
This tube uses a coaxial design and metal-ceramic technology. This triode may be operated in CW or pulse modes.
For operation in pulse mode, the parameters depend on each equipment characteristics.
Contact us for specific information. The ITK 12-1 is a water cooled triode. The output power is 40KW in CW mode.
The ITK 12-1 is a RF power triode designed specifically for industrial applications.
This tube uses a coaxial design and metal-ceramic technology. This triode may be operated in CW or pulse modes.
For operation in pulse mode, the parameters depend on each equipment characteristics.
Contact us for specific information. The ITK 12-1 is a water cooled triode. The output power is 40KW in CW mode.
GENERAL CHARACTERISTICS
Electrical
|
Filament thoriated tungsten |
|
|
|
Filament voltage (+ 5 %, - 10 %) |
5.8 V |
|
|
Filament current |
145 A |
|
|
Surge current |
600 A max. |
|
|
Cold resistance |
5 mΩ |
|
|
Capacitances |
grid-anode |
21 pF |
|
grid-cathode |
55 pF |
|
|
1 pF |
||
|
Amplification factor |
22 approx. |
|
|
Transconductance (Va: 10 kV, Ia:4 A) |
50 mA/V approx. |
|

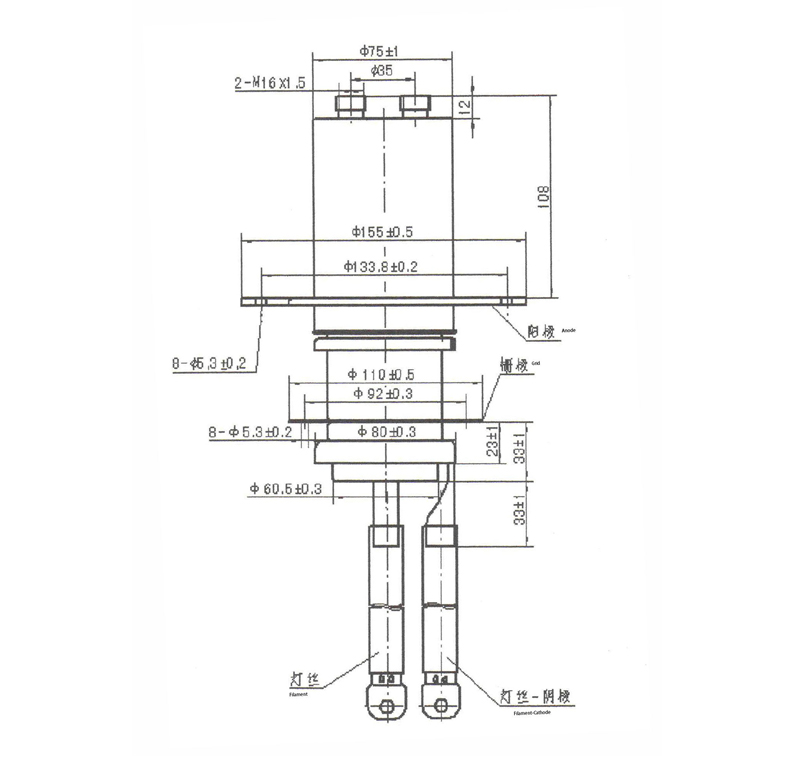

Mechanical
|
Operating position |
vertical, anode up or down |
|
Weight |
3.5 kg approx. |
|
Height |
248mm max. |
|
Diameter |
155.5mm max. |
