The 3CW20000A7 is a high-mu power triode intended to be used as a zero bias Class B amplifier in audio or radio frequency applications. Operation with zero-grid bias offers circuit simplicity by eliminating the bias supply. In addition, grounded grid operation is attractive since a power gain as high as twenty times can be obtained. The 3CW20000A7 is electrically identical to the air-cooled 3CX10000A7 except for its 29kW plate dissipation rating.
GENERAL CHARACTERISTICS
|
Plate Dissipation (Max.) |
20,000 W |
|
|
Grid Dissipation (Max.) |
500 W |
|
|
Frequency for Max. rating (CW) |
110 MHz |
|
|
Amplification Factor |
200 |
|
|
Filament/Cathode |
Thoriated Tungsten |
|
|
Voltage |
7.5 V |
|
|
Current |
99.0 A |
|
|
Capacitance, Grounded Cathode |
Input |
59.0 pf |
|
Output |
0.2 pf |
|
|
Feedthrough |
36 pf |
|
|
Capacitance, Grounded Grid |
Input |
59.0 pf |
|
Output |
36.0 pf |
|
|
Feedthrough |
0.2 pf |
|
|
Cooling |
Water and Forced Air |
|
|
Base |
Coaxial |
|
|
Air Socket |
Recommend SK-1300 |
|
|

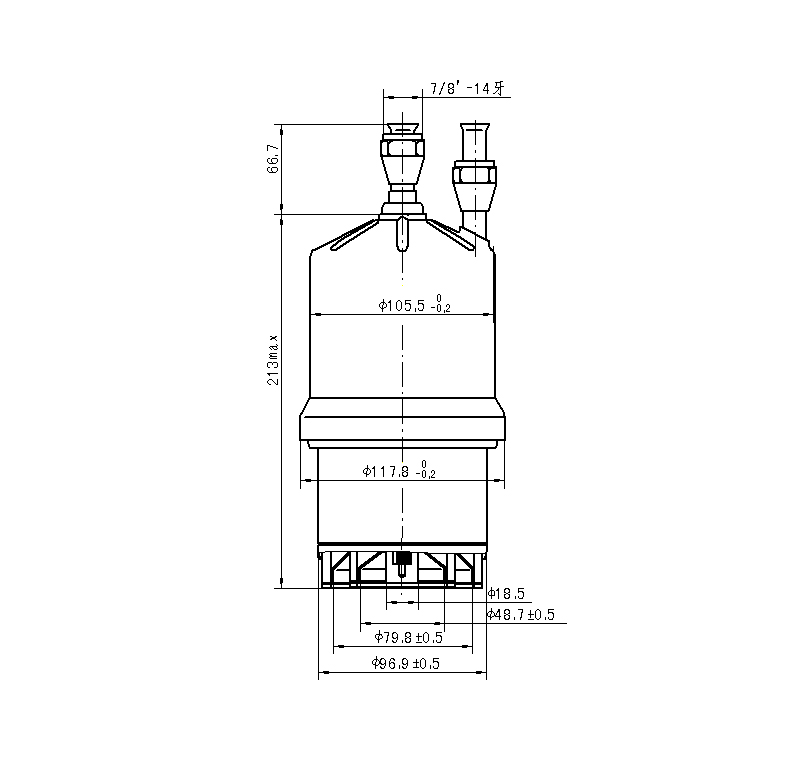

Length |
11.22 in; 285.00 mm |
|
|
Diameter |
4.65 in; 118.10 mm |
|
|
Weight |
11.5 lb; 5.2 kg |
|
