The 3CW5000F3 is a water cooled triode. It is ceramic-metal, thorium carbide tungsten cathode and low amplification factor. The anode dissipation power is 5kW max. The grid dissipation power is 150W max. It is designed for mainly used as a VF amplifier and modulator.
The anode voltage is 6kV when working at Class AB1 VF amplifier. The anode output power is 13kW max. when using 2 tubes.
The 3CW5000F3 is a water cooled triode. It is ceramic-metal, thorium carbide tungsten cathode and low amplification factor. The anode dissipation power is 5kW max. The grid dissipation power is 150W max. It is designed for mainly used as a VF amplifier and modulator.
The anode voltage is 6kV when working at Class AB1 VF amplifier. The anode output power is 13kW max. when using 2 tubes.
GENERAL CHARACTERISTICS
|
Filament Voltage |
7.5 V |
|
Filament Current |
51.5 A |
|
Transconductance |
22mA/V |
|
Amplification Factor |
22 |
|
Operation Position |
Vertical, base up or down |
|
Cooling |
|
|
Anode |
Water |
|
Stem |
Forced Air |
|
Maximum Seal Temperature with anode envelope |
250 ℃ |
|

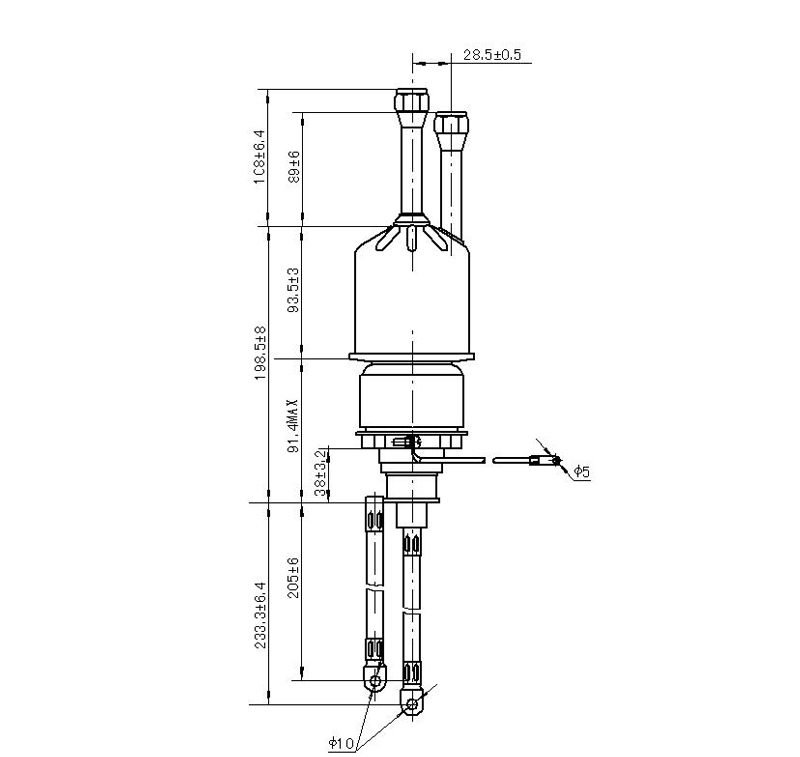

Maximum Height |
560.30 mm |
|
Maximum Diameter |
92.10 mm |
|
Appro.Net Weight |
1.6 kg |
MAXIMUM RATING ABSOLUTE
VF Power Amplifier or modulator
-Class AB1, Grid Driven, sine wave, single tube
|
Plate Voltage |
6 kV DC |
|
Plate Current |
2.5 A DC |
|
Plate Dissipation |
5 kW |
|
Grid Dissipation |
150 W |
