Frequency

 2450±30MHz

Output power into matched load

 15KW

Output

 probe radiating into BJ-22(IEC-R22) waveguide (54.6*109.2mm internal)

Cooling

 water and forced air

Cathode

 directly heated tungsten filament

Filament current(at pre-heating)

 47A

Filament voltage(for filament current of 47A)

 8.5±0.7V approx

Filament cold resistance

 0.015Ω approx

Filament pre-heating time(minimum)

 60s

Electro-magnet resistance(at 20°C)

 56%

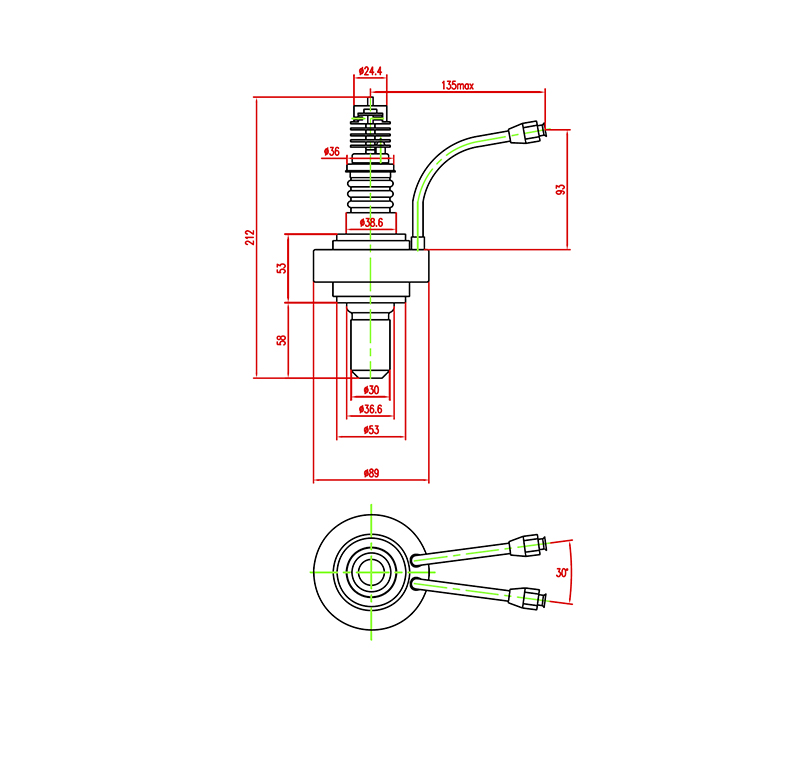

Overall dimension of magnetron

200×90×90mm nom

Net weight of magnetron

1.6kg approx

Mounting position

Filament terminal up or down
