RS3060CL is coaxial design, forced air cooled, and ceramic/metal power triode. The cathode is thoriated tungsten. The max. Working frequency is 100MHz. The max. anode dissipation power is 35kW and the max. oscillation power is 110kW. The tube is mainly used in industrial HF heating machines.
RS3060CL is coaxial design, forced air cooled, and ceramic/metal power triode. The cathode is thoriated tungsten. The max. Working frequency is 100MHz. The max. anode dissipation power is 35kW and the max. oscillation power is 110kW. The tube is mainly used in industrial HF heating machines.
GENERAL CHARACTERISTICS
Electrical
|
Filament/Cathode |
Thoriated Tungsten |
|
Voltage |
10 V |
|
Current |
195 A |
|
Amplification Factor |
22 |
|
Transconductance |
50mA/V |
|
Capacitance-Grounded Cathode |
|
|
Input |
100 pF |
|
Output |
46 pF |
|
Feedthrough |
3 pF |

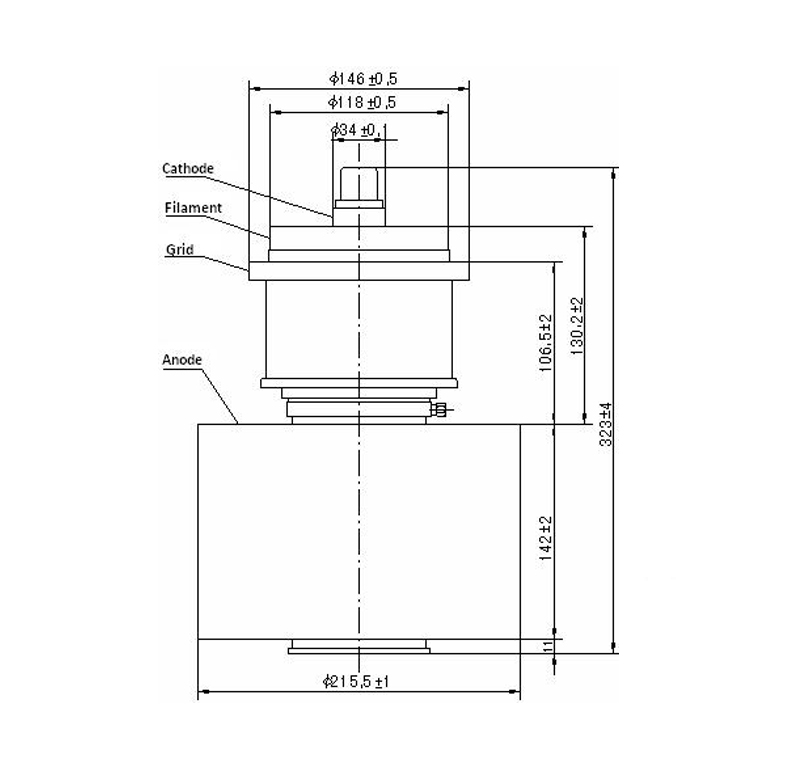

Mechanical
|
Length |
max.323mm |
|
Diameter |
max.216mm |
|
Weight |
20kg |
|
Operation Position |
Vertical, Anode up or down |
Cooling
|
Anode |
Forced Air |
|
Core |
Forced Air |
|
Air flow |
|
|
Anode |
≥40m3/min |
|
Core |
≥2m3/min |
|
Maximum temperature on tube envelope |
220℃ |
|
Maximum Anode Core and Seal Temperature |
220℃ |
