The 3CX2500F3 is a air cooled, ceramic-metal triode containing a thoriated tungsten carbide cathode which is designed for mainly used in industrial RF heating machines. The working frequency is max. 75MHz. The anode dissipation power is max. 4kW.
The 3CX2500F3 is a air cooled, ceramic-metal triode containing a thoriated tungsten carbide cathode which is designed for mainly used in industrial RF heating machines. The working frequency is max. 75MHz. The anode dissipation power is max. 4kW.
|
7.5 V |
||
|
Filament Current (at 7V) |
51.5 A |
|
|
Amplification |
22 |
|
|
Interelectrode Capacitance (Grounded Cathode) |
Cin |
35 pF |
|
Cout |
20 pF |
|
|
Cgp |
0.9 pF |
|
|
Maximum Operaing Frequency (continuing wave) |
75MHz |
|
|
Operation Position |
Vertical, base up or down |
|
|
Cooling |
Forced Air |
|
|
Maximum Seal Temperature |
250℃ |
|
|

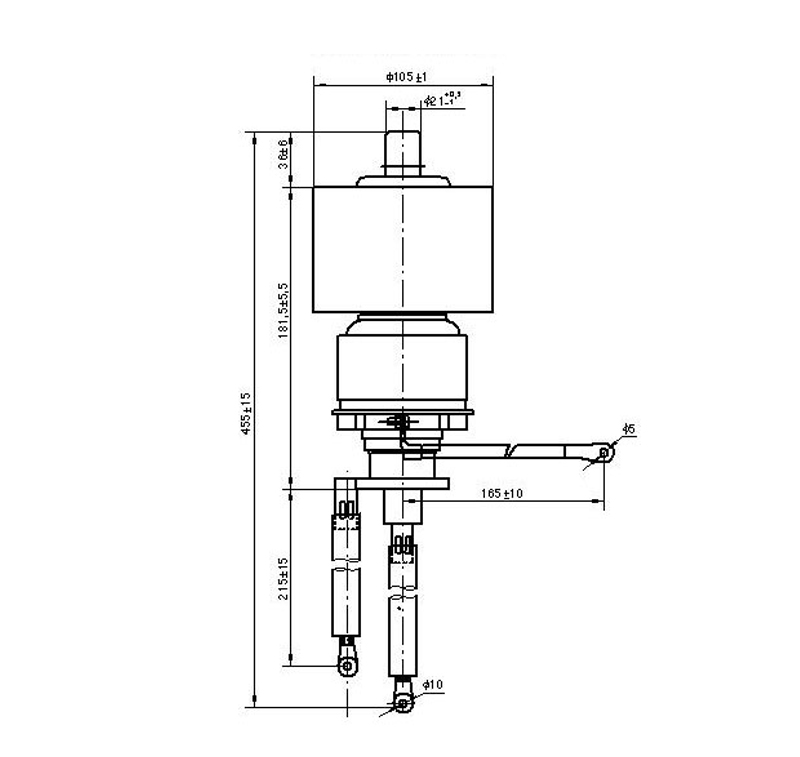

Maximum Height |
470 mm |
|
|
Maximum Diameter |
105.56mm |
|
|
Appro.Net Weight |
2.8 kg |
|
